SPECIFICATIONS:

o                    5 Modules

o                    All exterior stainless steel

o                    25mm fibreglass insulated

o                     Infinite control Hot cupboard

o                    Casters double ball bearing zinc ¨C plated swivel, casters with Polypropylene wheel (2 with brakes), OR stainless steel legs in lieu of casters, (CLIENT TO SPECIFY)

o                    Rust resistant metal interior hot press

o                    Power connection 15Amp lead

o                    Electrical loading 2.6kW

o                    Net weight 100kg

o                    Australian made Smithfield, NSW

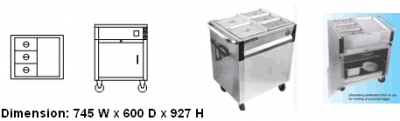

This heated food dispenser is manufactured with all stainless steel exterior with a

heated section under and the Bain Marie dishes are immersed in a heated water bath

for ideal storage.

The standard dish arrangement is : -

Three (3) 1/ 3/4 3 size (321mm x 177mm x 150 mm deep)

            Two (2) 1/2 size (321mm x 264mm x 150 mm deep)

SPECIFICATIONS:

¡¤   0.9mm 300 series stainless steel exterior

¡¤   1800 watt element to Bain Marie.

¡¤   600 watt element to heated storage cabinet.

¡¤   0.9mm mild steel electrolitically plated interior.

¡¤   1.6mm mild steel electrolitically plated base

¡¤   CASTORS: Double ball bearing zinc-plated swivel castors

                   with poly-propylene wheel. (Two with brakes).

¡¤   Thermostat controlled

¡¤   Power connection 10 Amp lead 2.4kW

¡¤   Net weight 120kg

¡¤   Australian made Smithfield, NSW

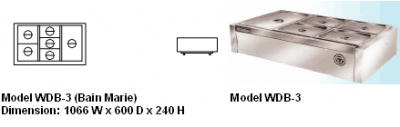

SPECIFICATIONS:

o              3 Modules

o              All exterior stainless steel

o              Interior Bain Marie 304 Series Stainless Steel

o              25mm fibreglass insulated to Bain Marie

o              Stainless steel drain to Bain Marie

o              Elements incalloy operate wet or dry

o              Water to Bain Marie manual fill

o              Thermostat controlled Bain Marie

o              Power connection 10Amp 240V lead

         WDB-4 = 3 kW

o              Net weight 35kg

o              Australian made Smithfield, NSW

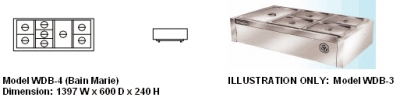

SPECIFICATIONS:

o              4 Modules

o              All exterior stainless steel

o              Interior Bain Marie 304 Series Stainless Steel

o              25mm fibreglass insulated to Bain Marie

o              Stainless steel drain to Bain Marie

o              Elements incalloy operate wet or dry

o              Water to Bain Marie manual fill

o              Thermostat controlled Bain Marie

o              Power connection 15Amp 240V

         WDB-4 = 3 kW

o              Net weight 50kg

o              Australian made Smithfield, NSW
