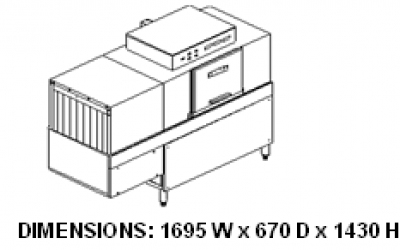

     Top Mounted Controls and Electrical Control Gear, away from water splash,

   easy access for Servicing: Machine operation inter-locked to Rinse Temperature

             Digital Display of Wash and Rinse Temperatures

Including.-

¡¤         2-speed conveyor (150/110 racks per hour at the flick of a switch).

¡¤         Fully panelled front and sides (avoiding water splash to

      motors etc: when dish wash area is being cleaned).

¡¤         Light duty pre-wash (0.75kW Pump) upper wash arms

¡¤         Power wash (2.2kW Pump)

¡¤         Automatic fill and fitted with Door safety switches.

¡¤         Clutch controlled conveyor (providing protection to drive

      mechanism if racks jam in machine).

¡¤         Low water protection (to wash tank elements).

¡¤         Integral rinse booster heater 12kW.

¡¤         Wash and rinse elements fitted with individual thermostats.

¡¤         Dual filter system.

¡¤         Rinse economiser (pre-set to provide precise volume of

      rinse water irrespective of fluctuating water supply pressure)

      Water Consumption: 400 Litres per hour (Maximum)

¡¤         Independent pre wash fill and wash fill.

¡¤         Pre-Wash Pump:0. 75 kW pump 400 Lt/minute

¡¤         Pre-Wash Tank Capacity: 30 Litres

¡¤         Wash Pump, 2.2 kW. Wash pump 900 Lt/minute

¡¤         Wash Tank Capacity: 86 Litres - Rinse Tank Capacity: 16 Litres

¡¤         Wash Tank Heater: 5.4 kW, Rinse Tank Heater: 12 kW,  Drive Unit:0. 18 kW

¡¤         Wash Temperature: 60¡ãC to 65¡ãC

¡¤         Rinse Temperature: 82¡ãC minimum

¡¤         Water Input: 65¡ãC minimum @ 200-400 kPa

¡¤         Hot Water Inlet: 1/2¡± B.S.P. fitting - Drain Outlet: 2 x 2¡± B.S.P. gravity fed

¡¤         Net Weight 220kg

  All other details in accordance with our published specifications:

                        Requires 415/50/3N, 27kW + Neutral electrical supply:

Complete with:-

 4 x U K Plate Racks & 2 x BK cup/Cutlery Racks

                      This curve is driven by the conveyor mechanism of the Eswood

                          Dishwasher. It is used to change direction of rack to the entry end

                      of the dishwasher.

              The unit is constructed from Stainless Steel with a Stainless Steel drip tray

                  fitted with a 2" BSP waste, the legs are Stainless Steel with adjustable feet.

          Dimensions: 1065mm wide x 1065mm Deep, Height adjustable to

          match dishwasher
SUPPLY ONLY-INSTALLATION BY OTHERS

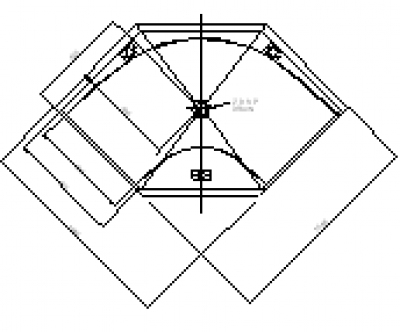

90-DEGREE ENTRY POWERED CURVE (90DREN)

(DIRECTION OF TRAVEL RIGHT TO LEFT)

                  This curve is driven by the conveyor mechanism of the Eswood

                          Dishwasher. It is used to change direction of rack to the entry end

                      of the dishwasher.

              The unit is constructed from Stainless Steel with a Stainless Steel drip tray

                  fitted with a 2" BSP waste, the legs are Stainless Steel with adjustable feet.

          Dimensions: 1065mm wide x 1065mm Deep, Height adjustable to

          match dishwasher

90-DEGREE ENTRY POWERED CURVE (90DREN)

                                             (DIRECTION OF TRAVEL RIGHT TO LEFT)

                              This curve is driven by the conveyor mechanism of the Eswood

                              Dishwasher. It is used to change direction of rack to the entry end

Change the travel direction of racks moving down the inlet

                   bench by 90 deg.  The unit is powered by the transport mechanism

              of the dishwasher and has a waste connection.

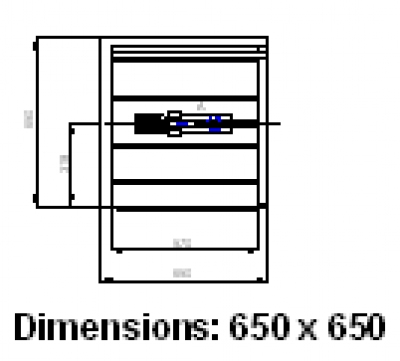

SPECIFICATIONS:

• Wash up to 1200 mixed items per hour
• Wash chamber clearance 295mm
• Standard rack (400 x 400)
• Fully automatic
• Gravity drain
• Cycle time   1min – 2 min
• Water consumption 2.5 liters per cycle
• Lower & upper wash arms, lower & upper rinse arms
• Connected to hot water 60 – 65 degree Celsius
• Fitted with automatic rinse aid hose
• Low temperature cut out switch (rinse temperature must be minimum 77 degree Celsius)
• Fitted with back flow prevention and safety door switch
• Power indicator lights fitted
• Drain 2 inch BSP gravity
• Hot water supply ½ inch bsp @ 65 degree Celsius (100-420kpa or 15-60psi)
• Electrical single phase 15amps
• Water board approved
• Conforms to health regulations & ANZFA regulations
• 12 months parts & labour warranty
• Made in Australia, Smithfield

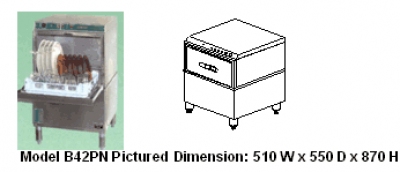

SPECIFICATIONS:

• Fitted with drain pump
• Wash up to 1200 mixed items per hour
• Wash chamber clearance 295mm
• Standard rack (400 x 400)
• Fully automatic
• Cycle time   1min – 2 min
• Water consumption 2.5 liters per cycle
• Lower & upper wash arms, lower & upper rinse arms
• Connected to hot water 60 – 65 degree Celsius
• Fitted with automatic rinse aid hose
• Low temperature cut out switch (rinse temperature must be minimum 77 degree Celsius)
• Fitted with back flow prevention and safety door switch
• Power indicator lights fitted
• Drain hose supplied
• Hot water supply ½ inch bsp @ 65 degree Celsius (100-420kpa or 15-60psi)
• Electrical single phase 15amps
• Water board approved
• Conforms to health regulations & ANZFA regulations
• 12 months parts & labour warranty
• Made in Australia, Smithfield

            Includes pre-wiring of dishwasher control box and length of

           inter-connecting cable.  Drive in the machine will stop and re-start

           when the switch no longer detects a rack in close proximity (fitting to

           exit bench to be by others)

DIMENSIONS: 540W x 540D x 890H

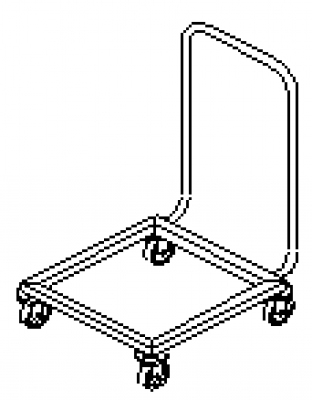

Mobile stainless steel racks storage dolly with handle

Weight 11kg

DIMENSIONS: 460mm x 460mm

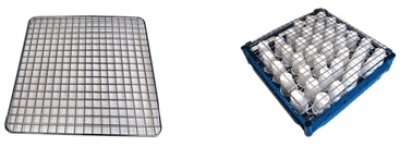

Stainless Steel mesh is used to prevent light weight plastic cups from

tipping during wash cycle

Incorporated into the face of the control panel:

The user can access this to display information regarding operating temperatures and other information in real time. |date-time-temperature data can be downloaded for hard copy printing via the RS232 communications interface and the unit connected to BMS; processed data is stored in memory for 60 days

This curve is driven by the conveyor mechanism of the Eswood

                          Dishwasher. It is used to change direction of rack at the entry end

                      of the dishwasher.

              The unit is constructed from Stainless Steel with a Stainless Steel drip tray

                  fitted with a 2" BSP waste, the legs are Stainless Steel with adjustable feet.

          Dimensions: 1065mm wide x 1065mm Deep, Height adjustable to

          match dishwasher
